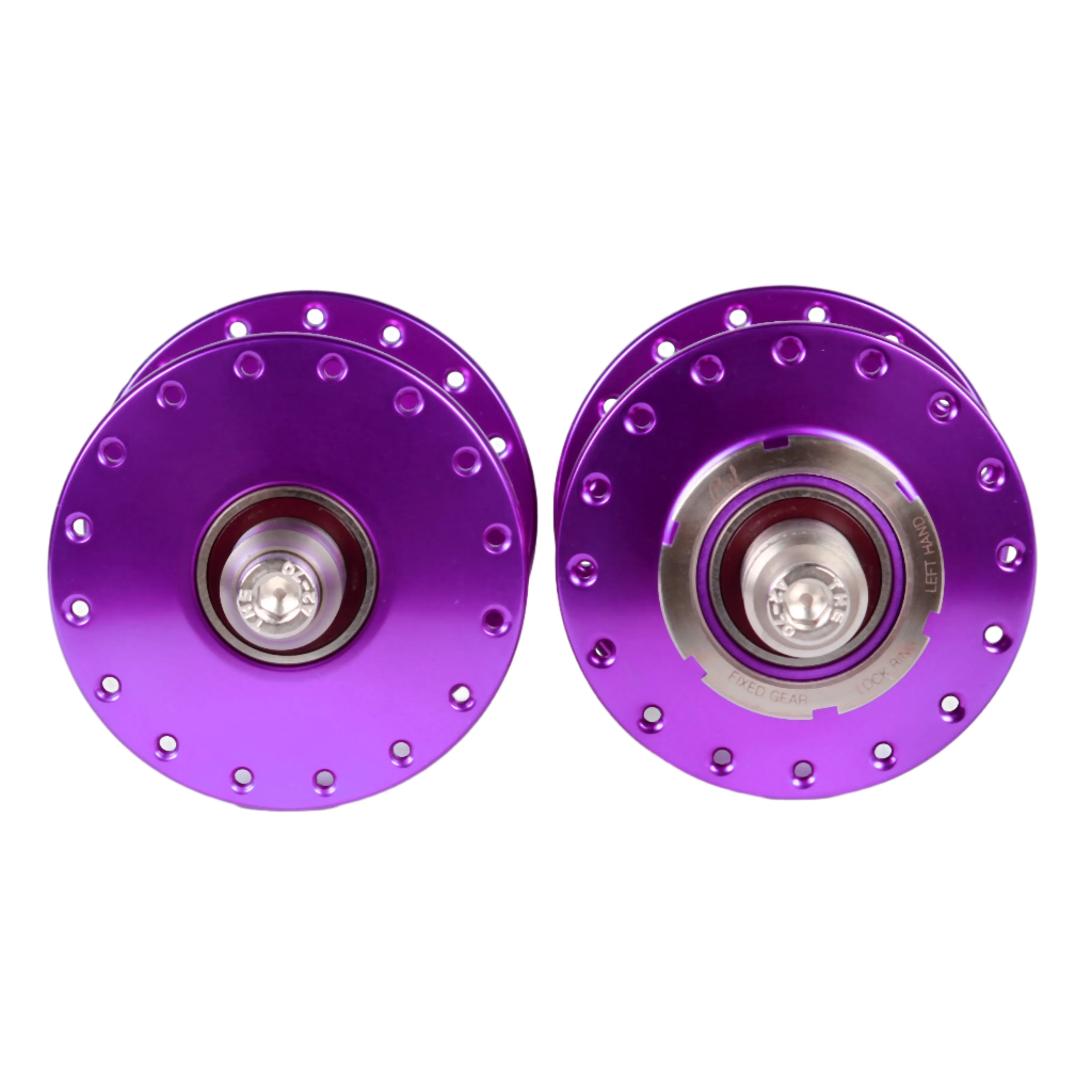

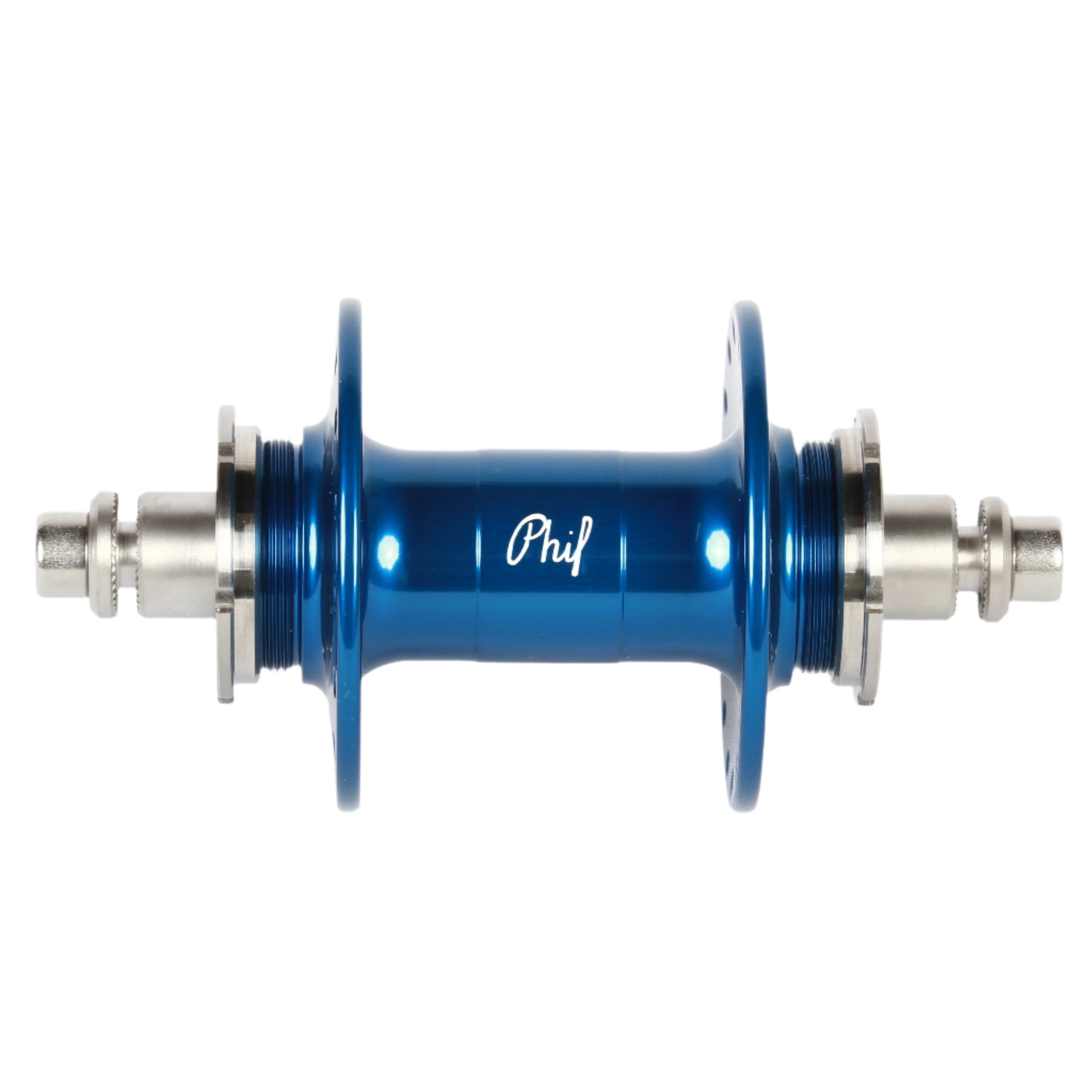

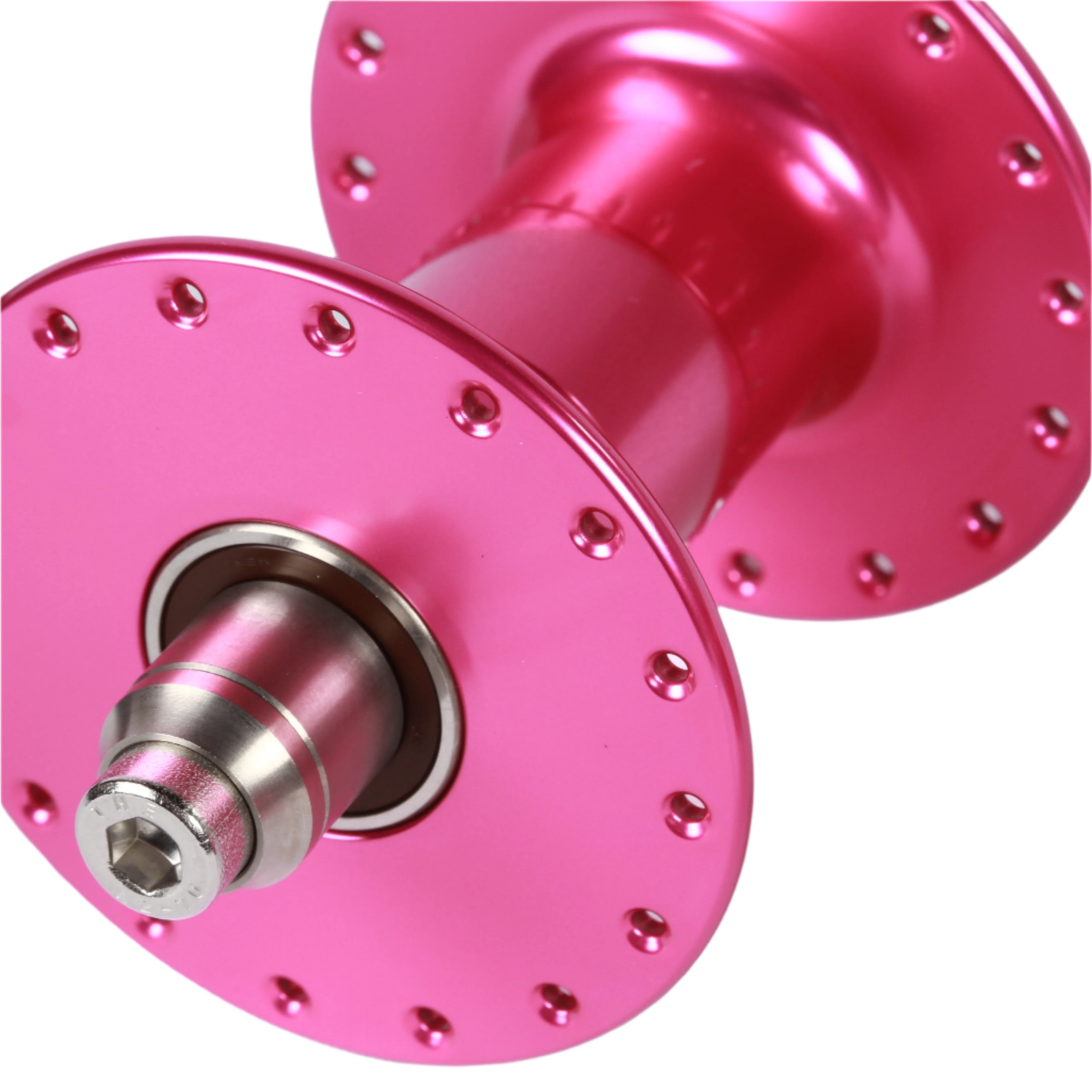

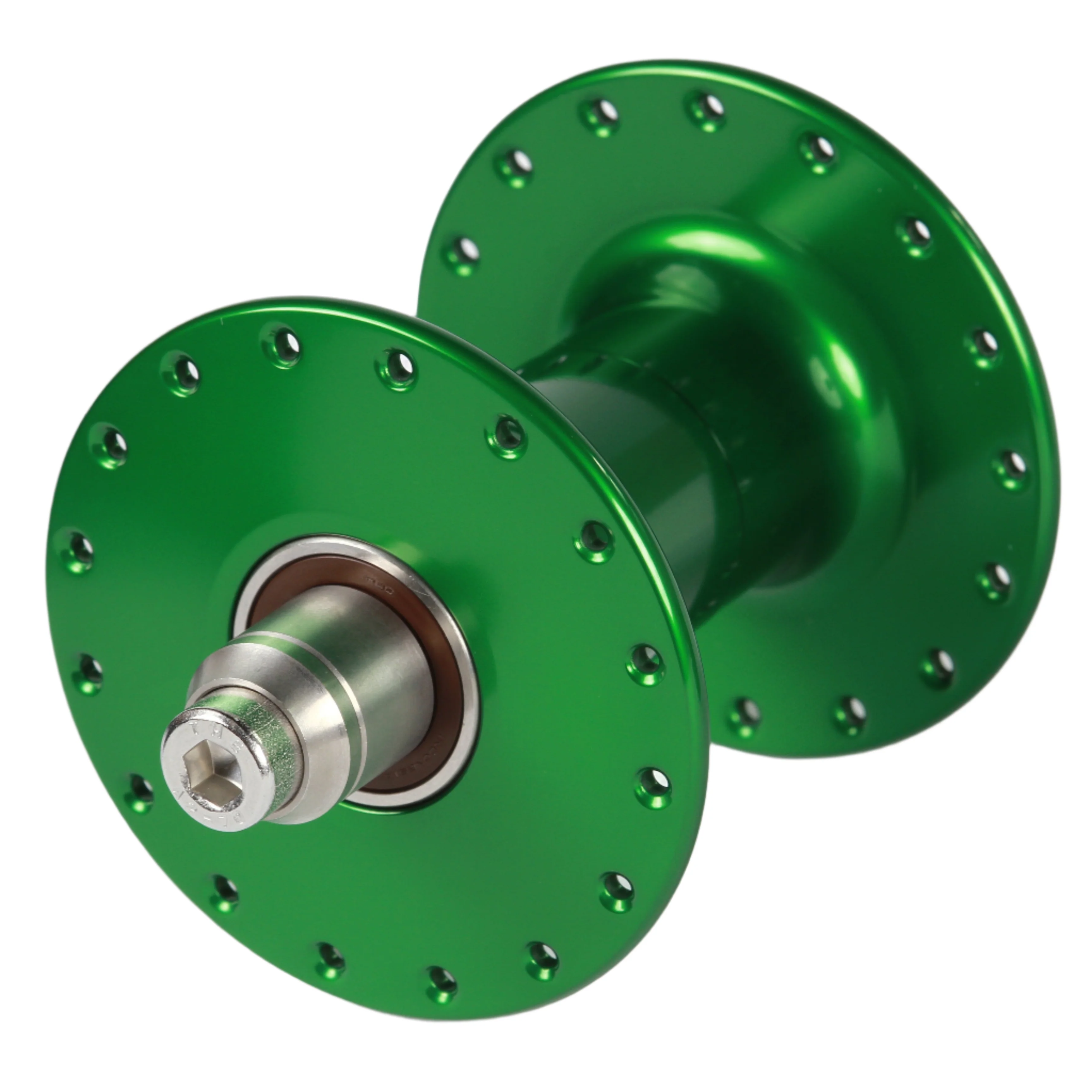

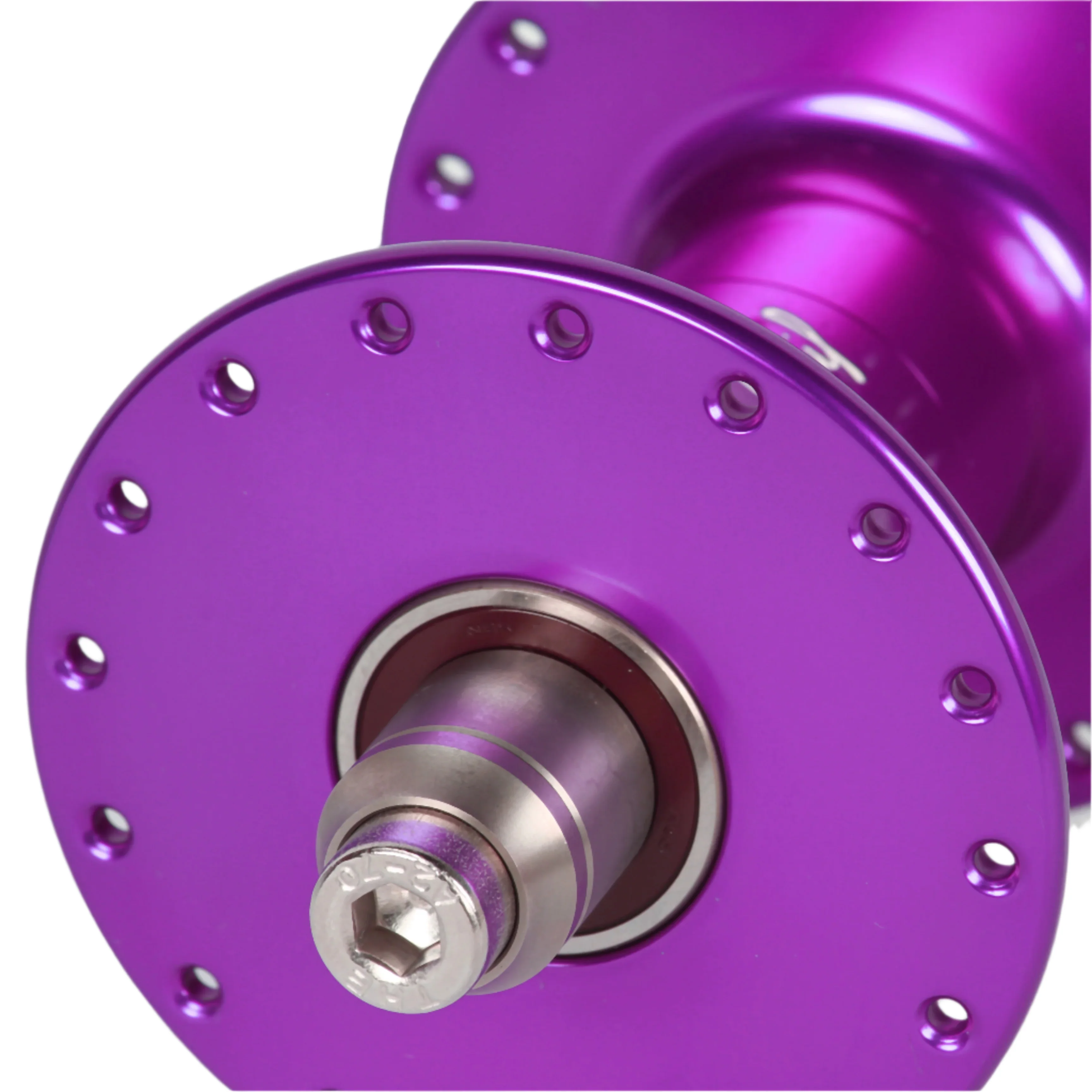

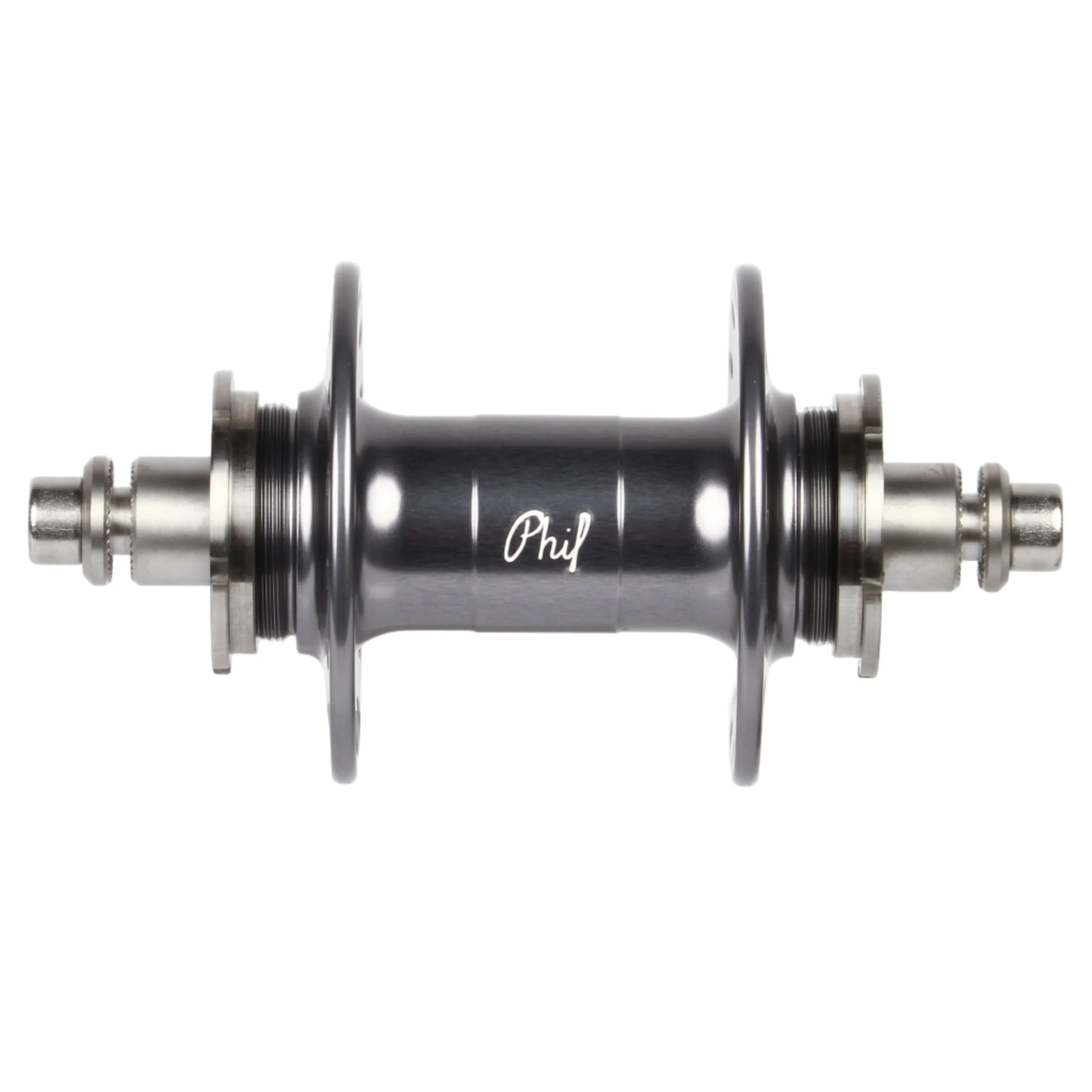

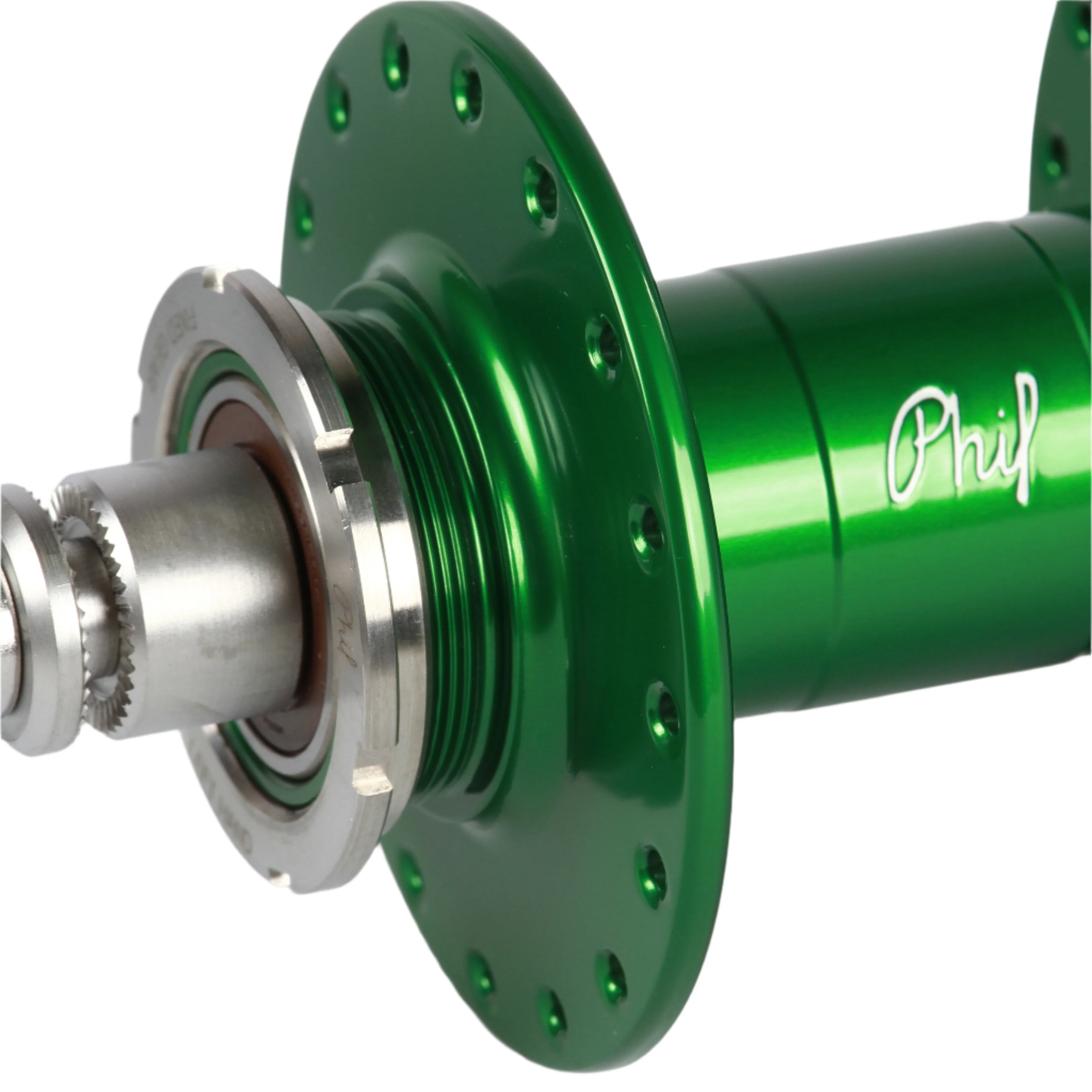

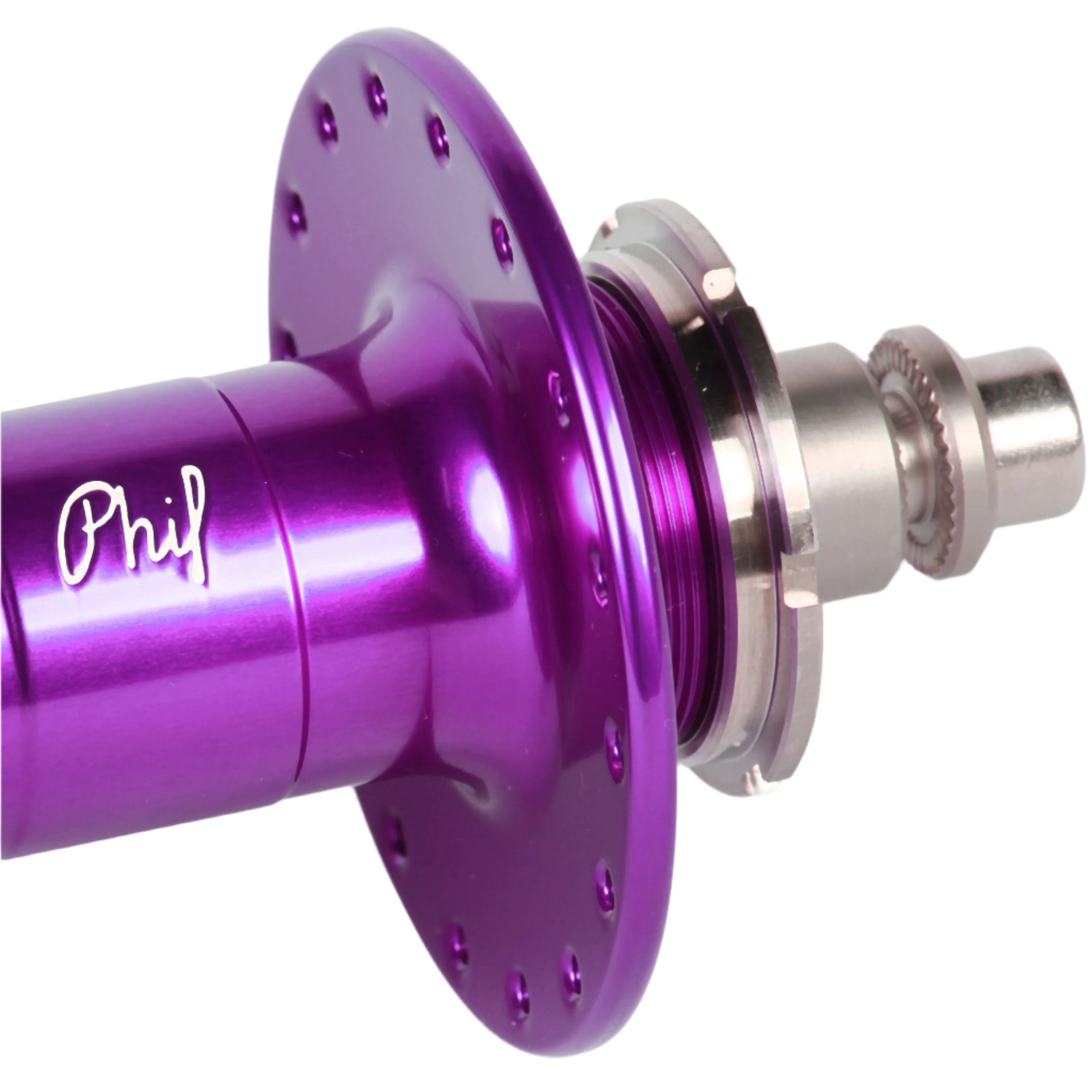

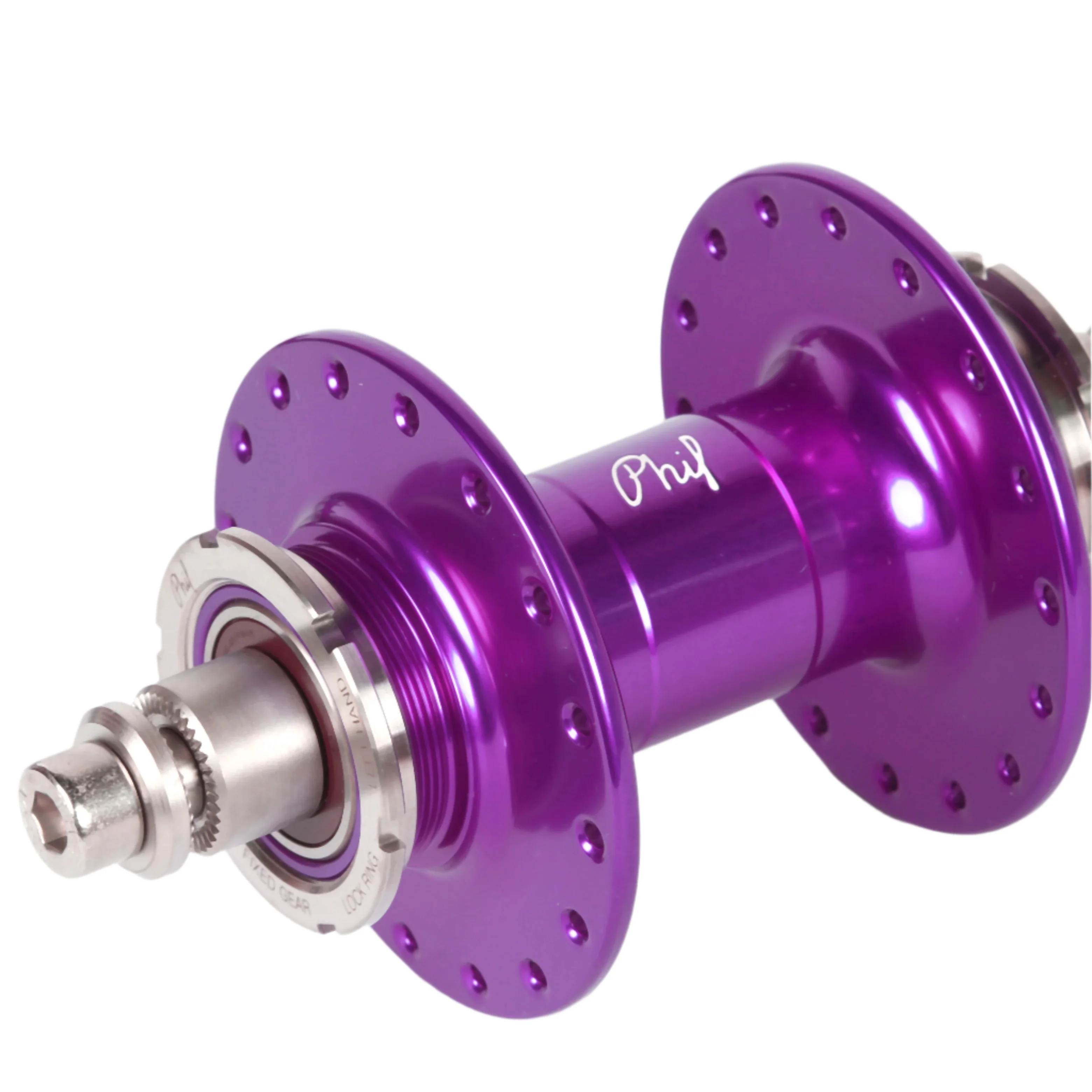

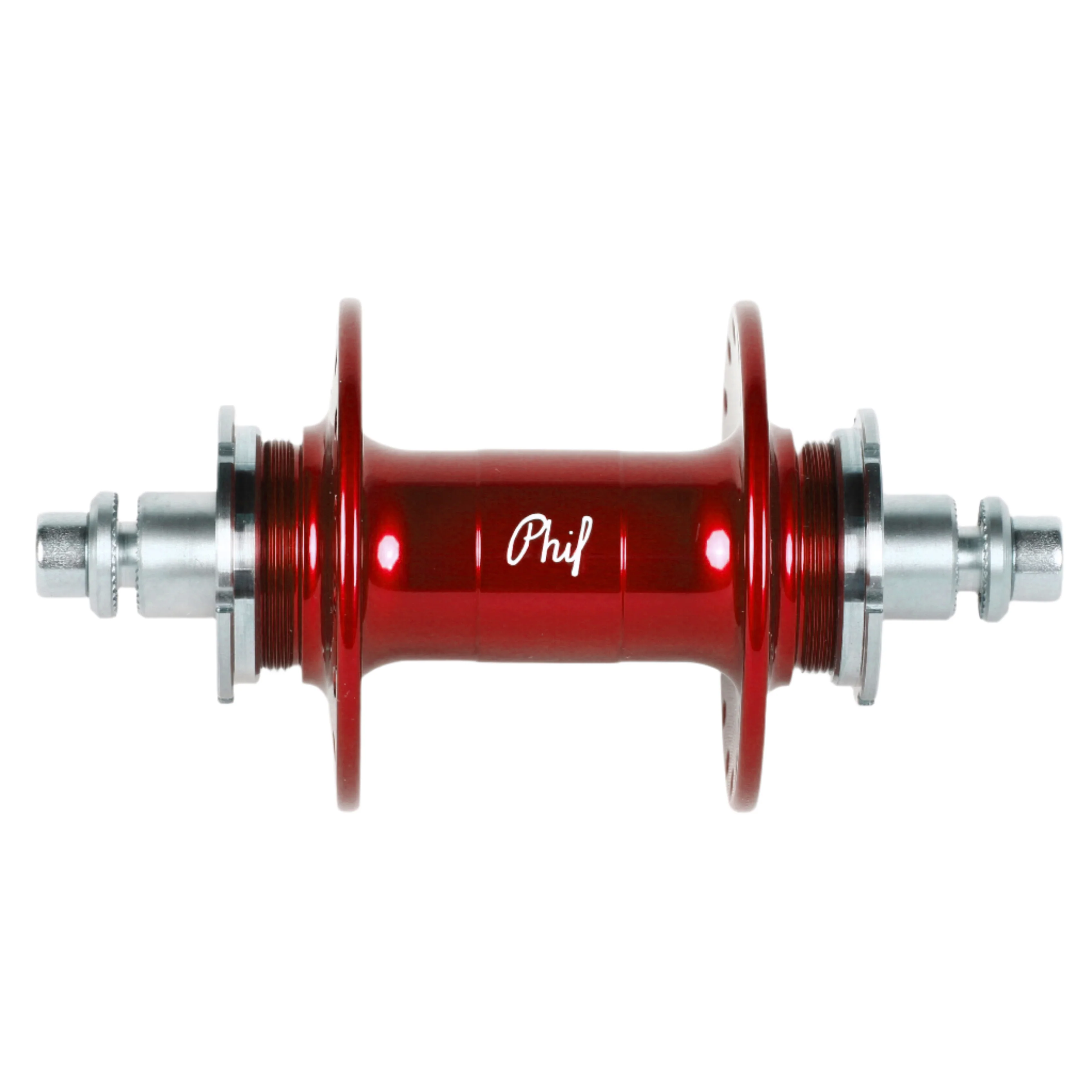

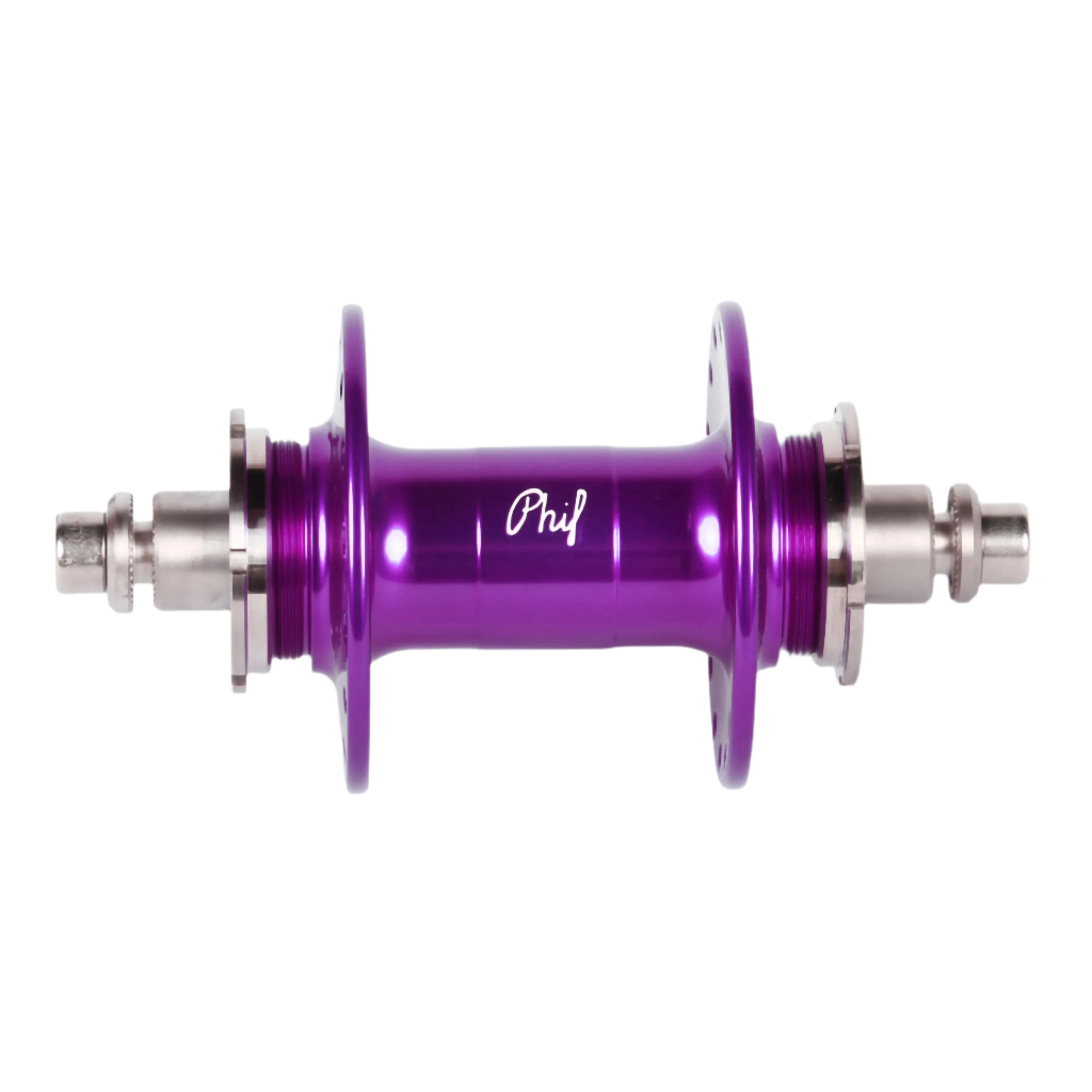

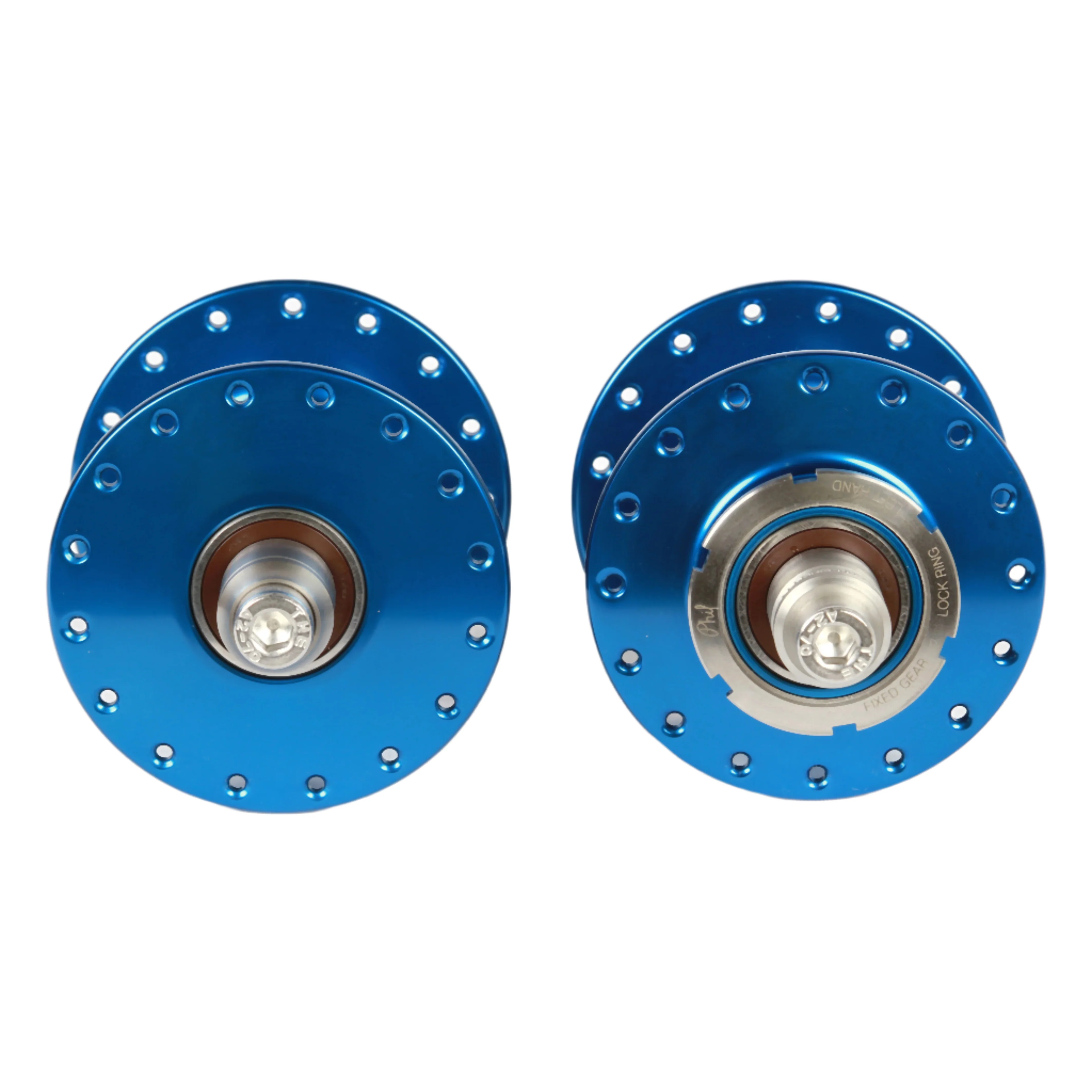

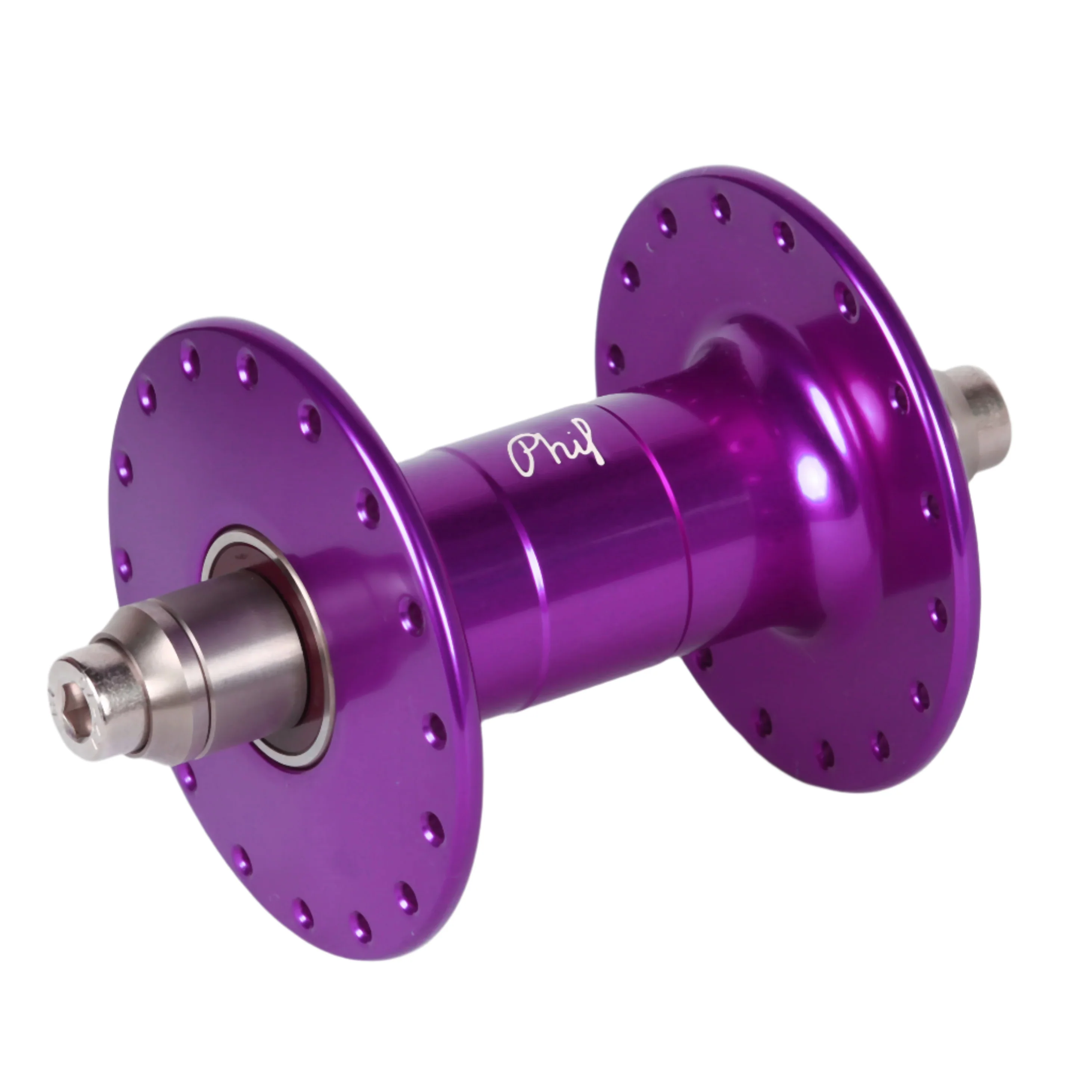

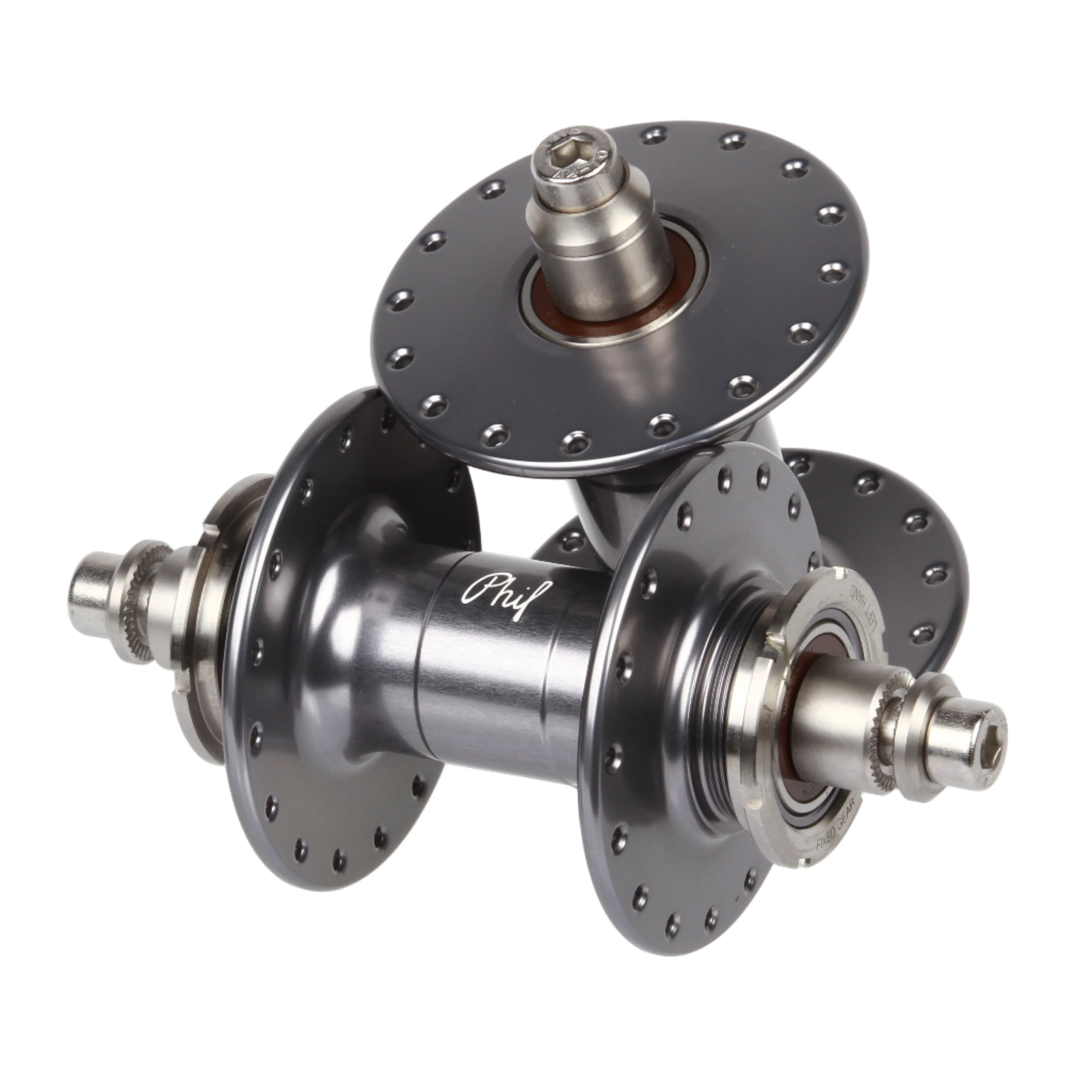

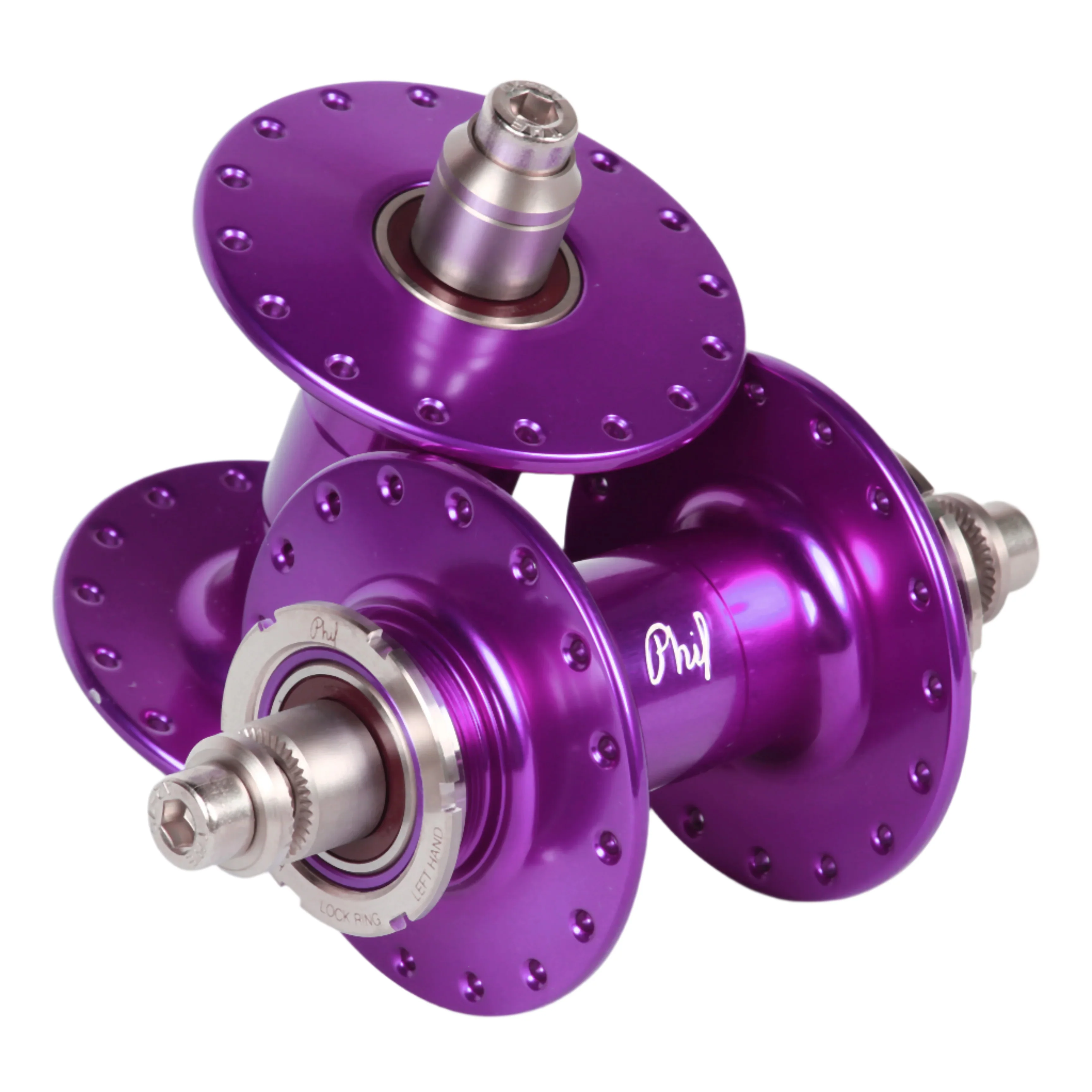

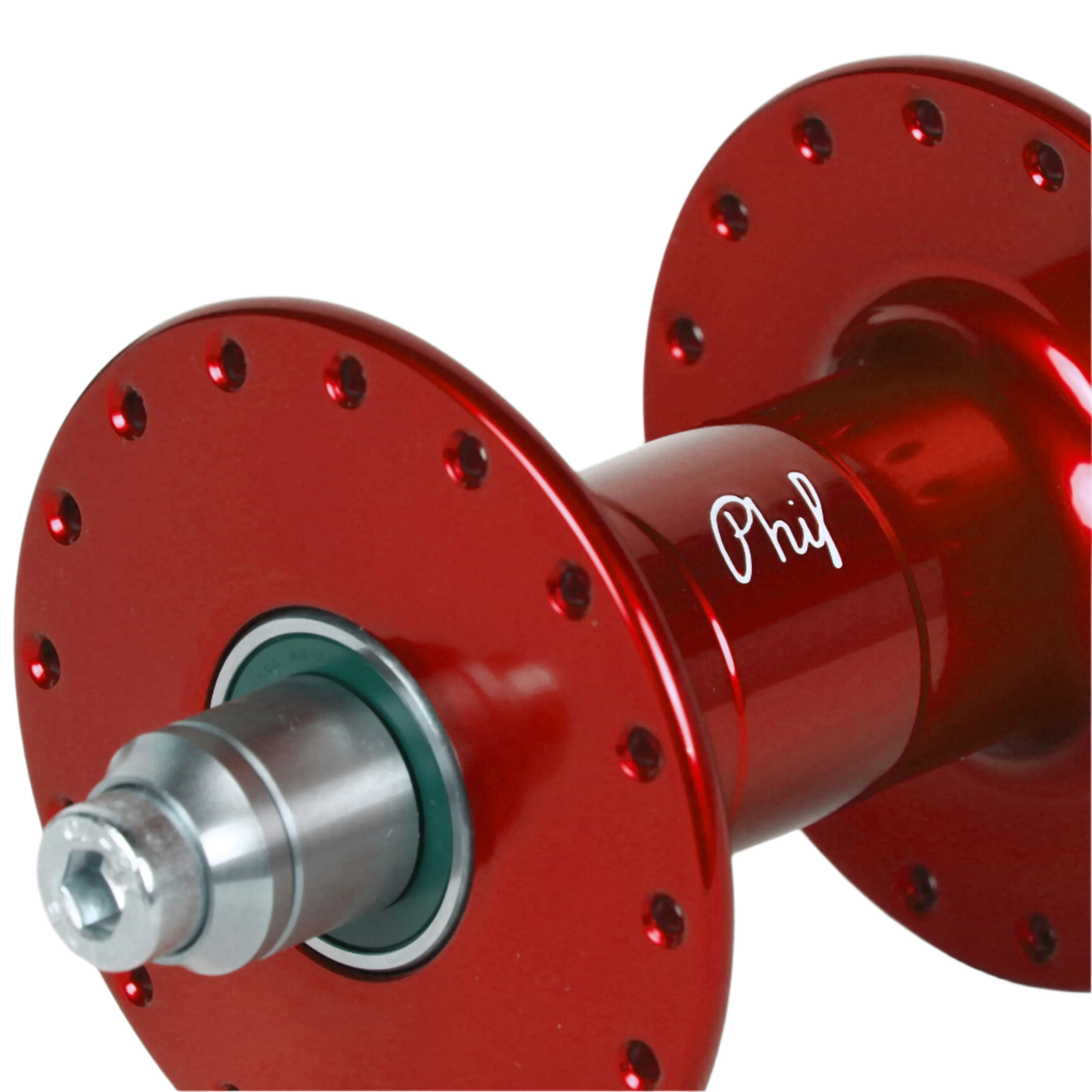

Phil Wood high flange track hubs are machined from USA made 6061 aluminum in San Jose CA and feature full contact sealed cartridge stainless steel bearings packed full of Phil Waterproof Grease, stainless steel end caps, axle bolts and washers, and are 100% awesome.

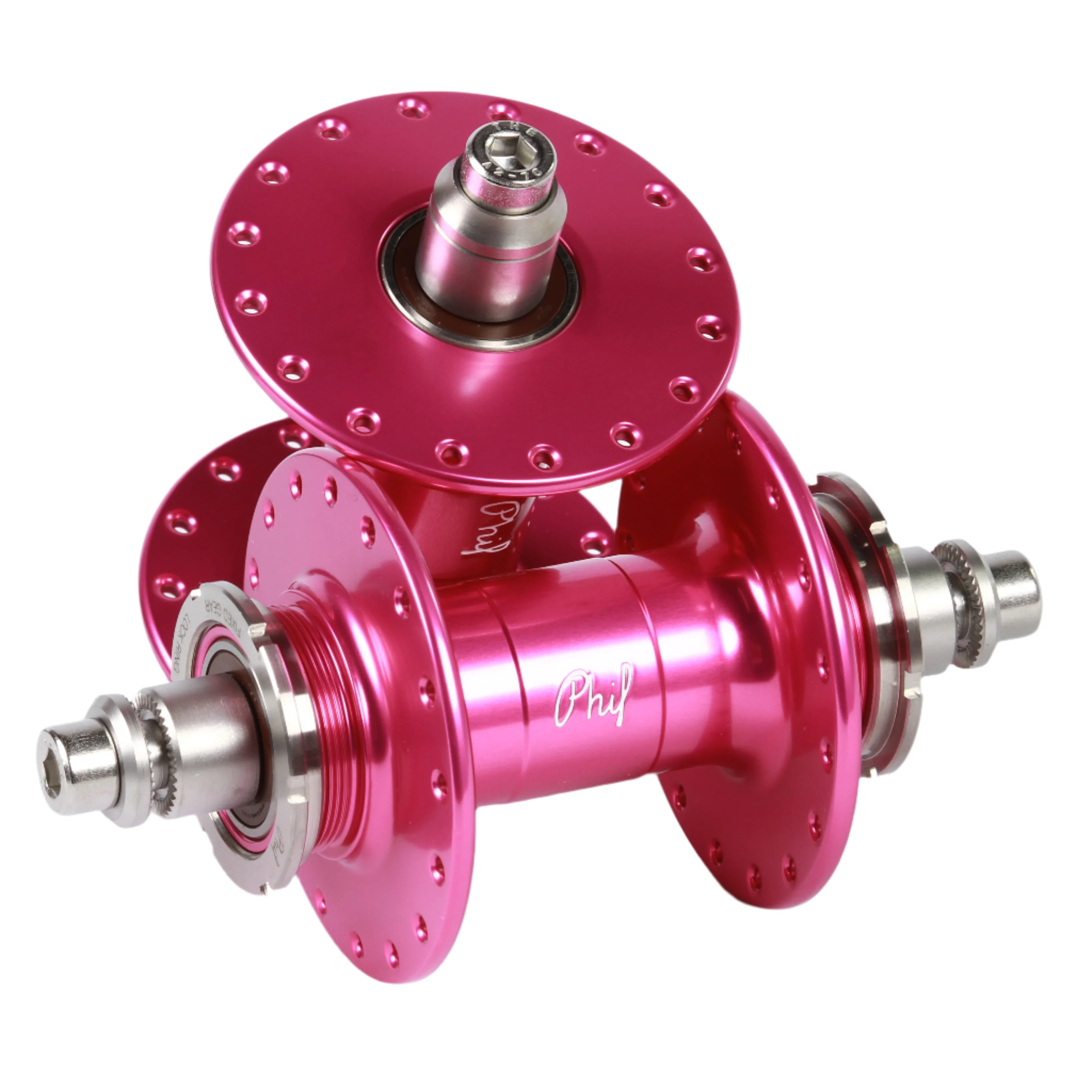

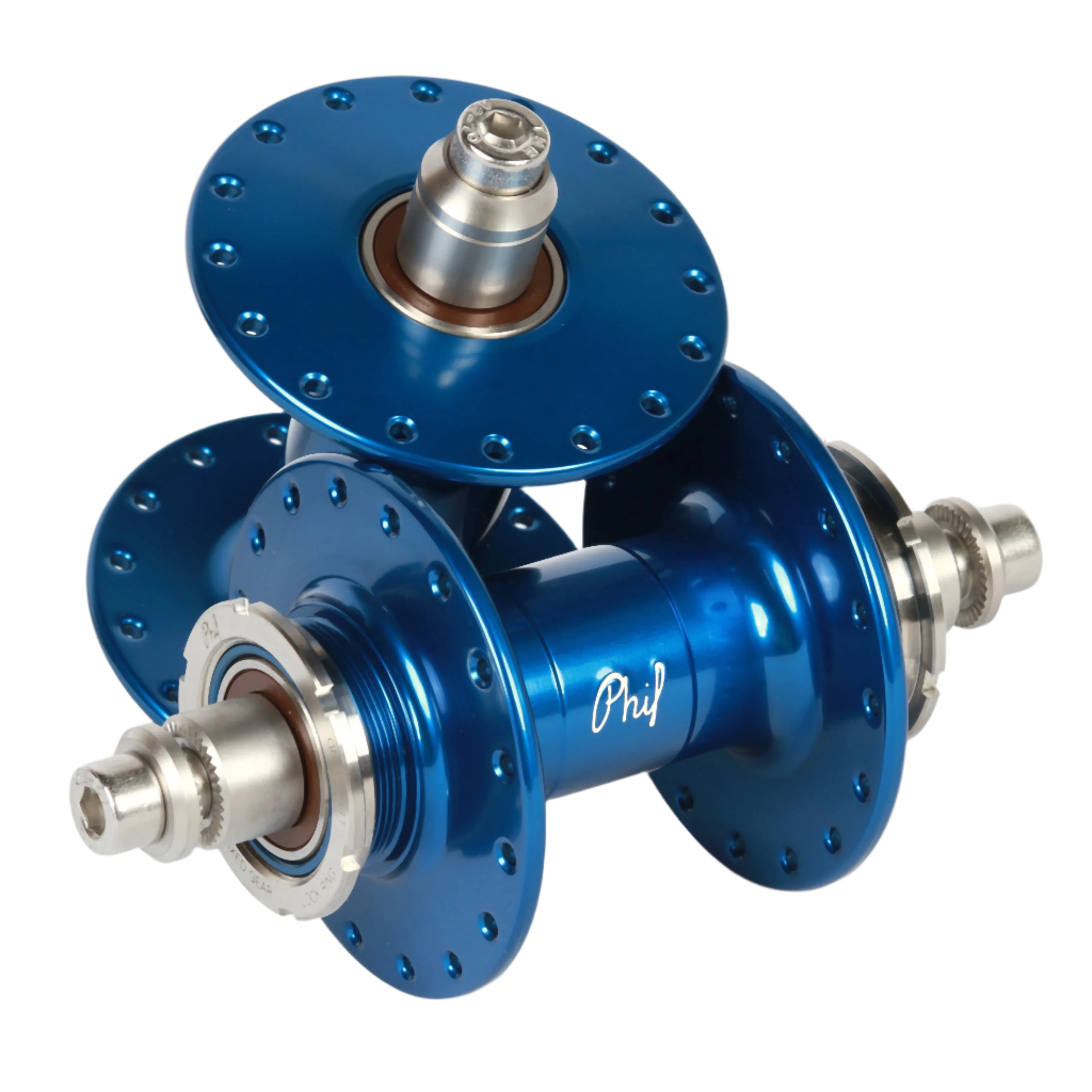

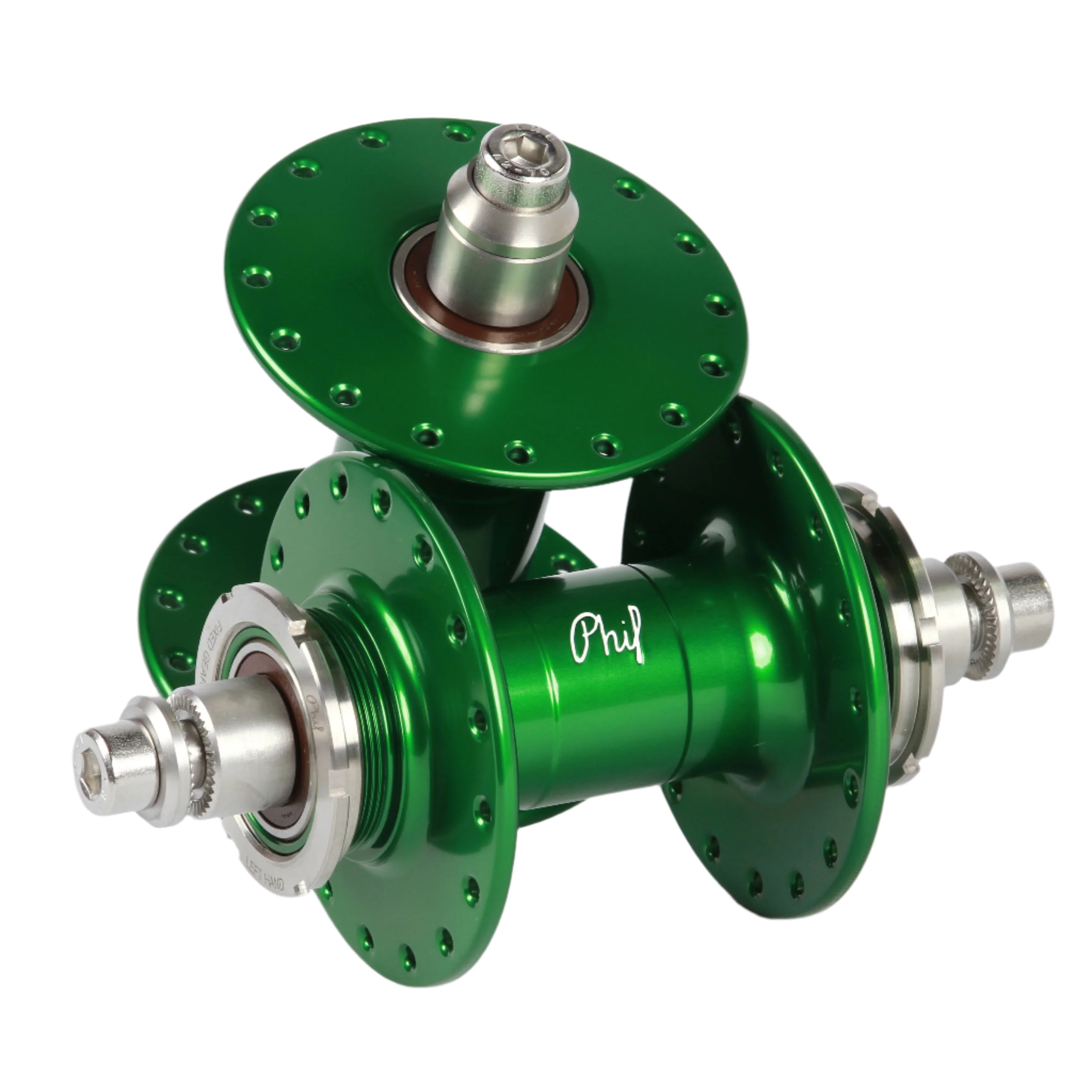

Sold in matching 32h sets.

Specifications

• 32h

• spacing: 100mm front, 120mm rear

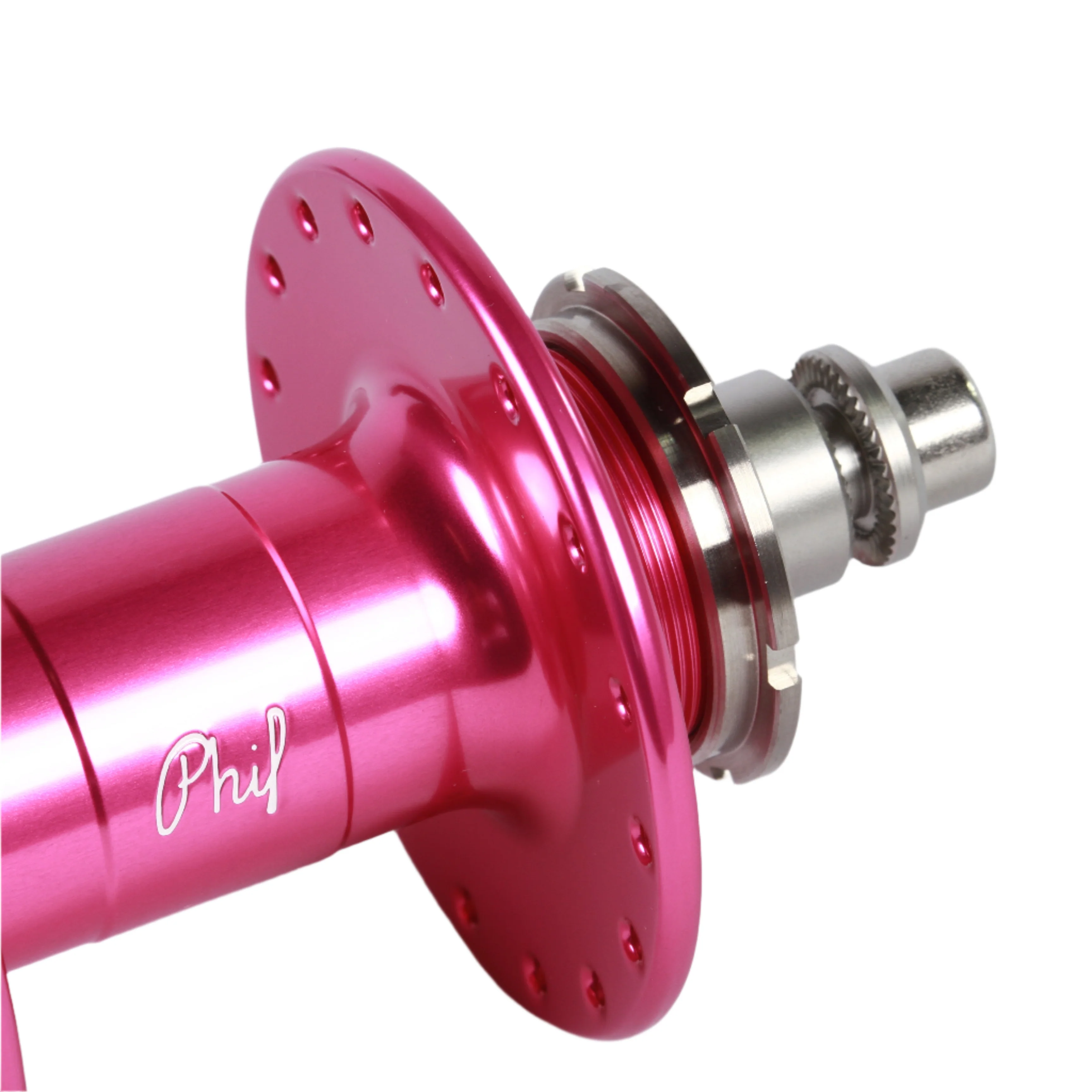

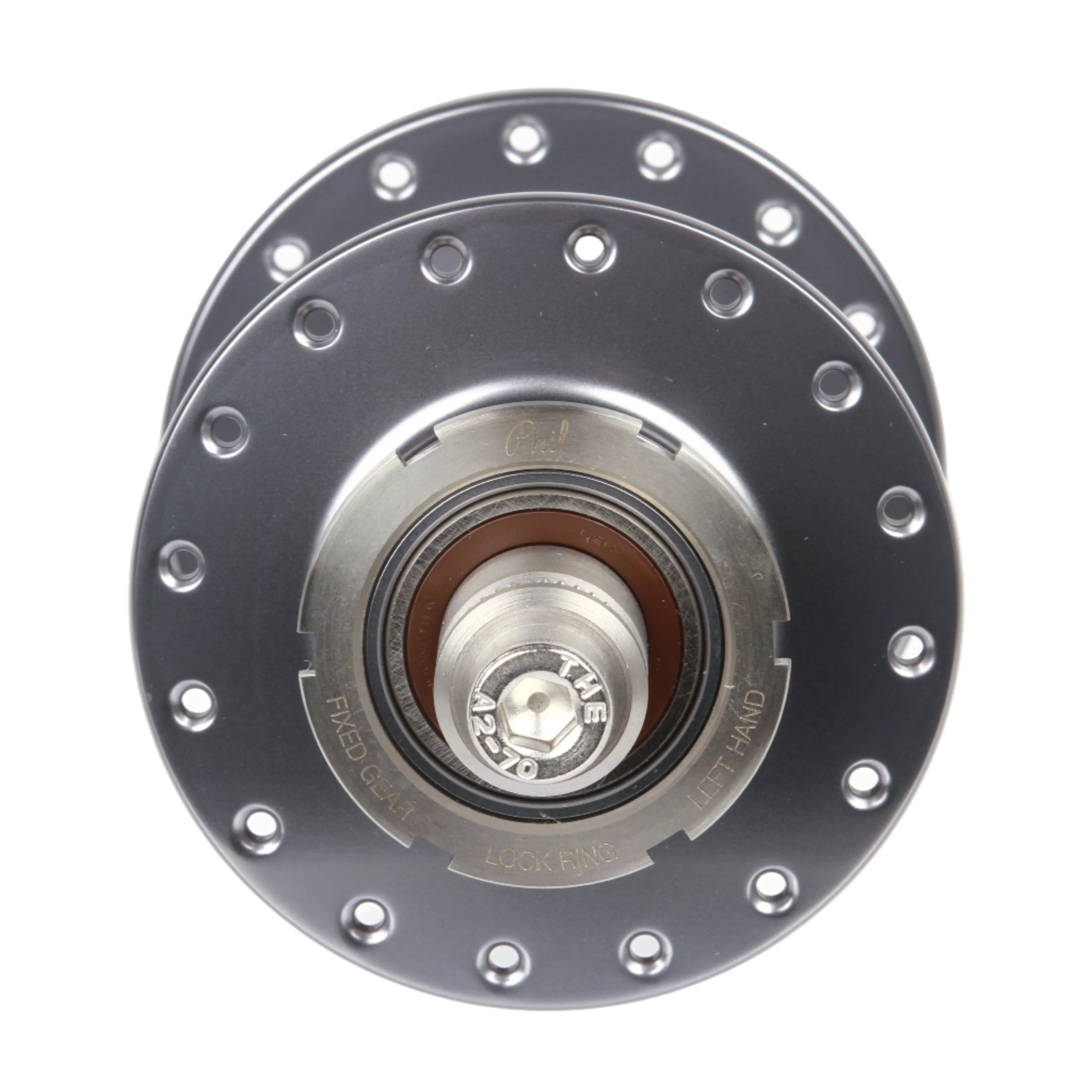

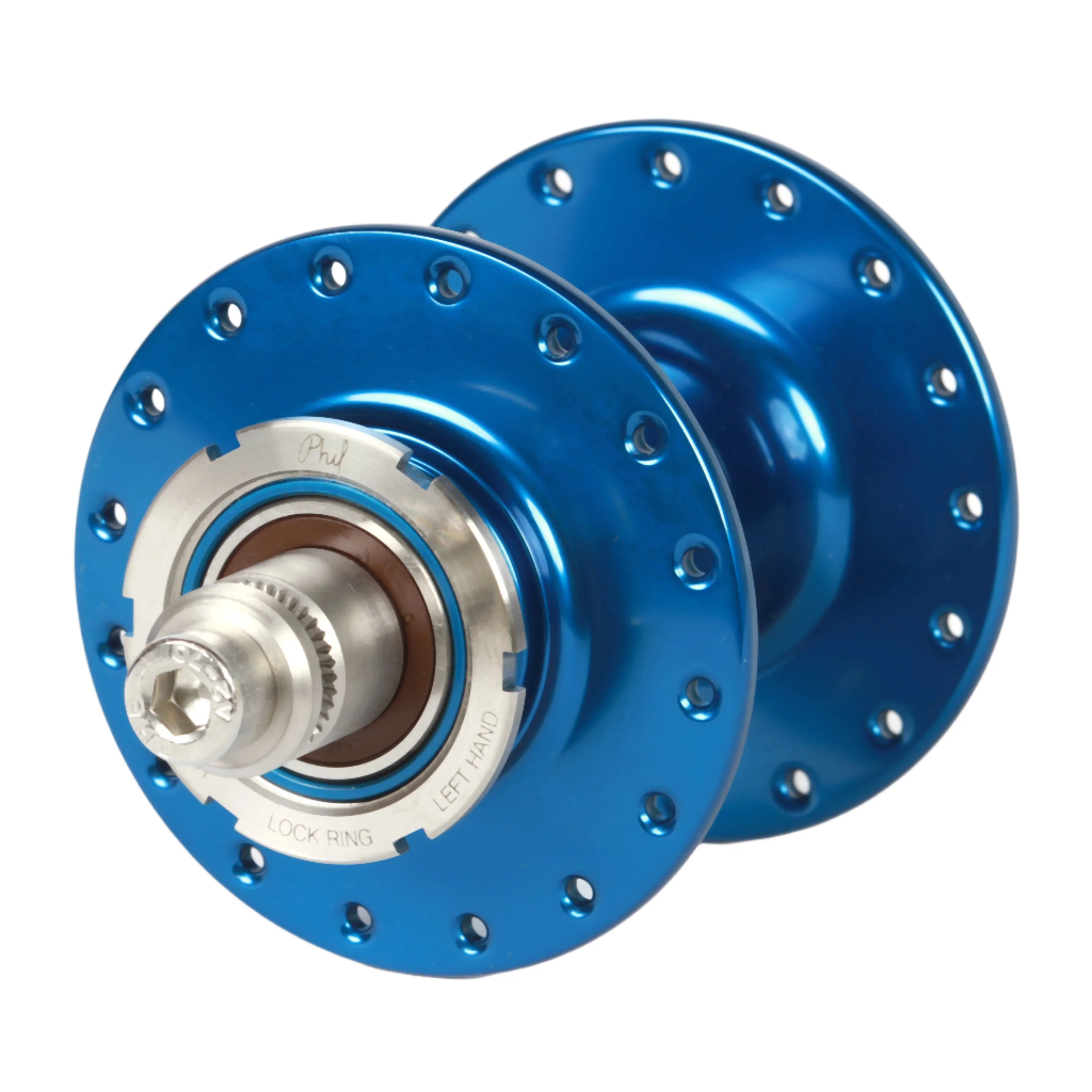

• rear is fixed/fixed and includes two Phil Wood lockrings

• lockring threading: Italian

• flange diameter: 66mm

• front center-to-flange: 33.5mm

• rear center-to-flange: 29.5mm

• combined rider/bike weight limit: 280 lbs (127 kgs)

• weight: 262g front; 417g rear (including lockrings)

Phil Wood hub maintenance

Phil Wood Front Track Hub Care Instructions (pdf)

Phil Wood Rear Track Hub Care Instructions (pdf)
