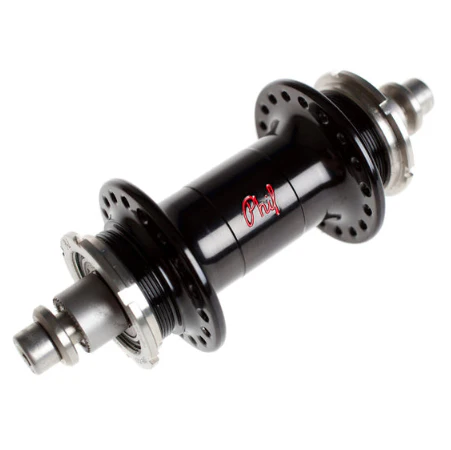

Phil Wood low flange track hubs are machined from USA made 6061 aluminum in San Jose CA and feature full contact sealed cartridge stainless steel bearings packed full of Phil Waterproof Grease, stainless steel end caps, axle bolts and washers, and are 100% awesome.

Specifications

• 32h

• spacing: 120mm

• single-side fixed, fixed/fixed or fixed/free

• includes Phil Wood lockrings

• lockring threading: Italian

• flange diameter: 47.5mm

• center to flange: 42.5mm L /30mm R (single-side fixed); 29mm (fixed/fixed, fixed/free)

• recommended combined rider/bike weight limit: 280 lbs (127 kgs)

• colors: polished silver, black

• weight: 342g (single fixed); 366g (fixed/fixed)

Phil Wood hub maintenance

Phil Wood Rear Track Hub Care Instructions (pdf)
